€13,399

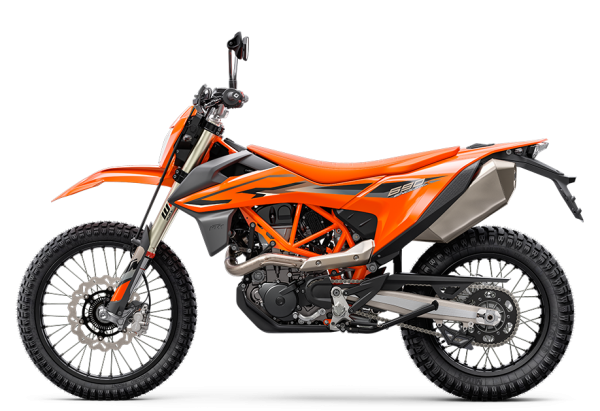

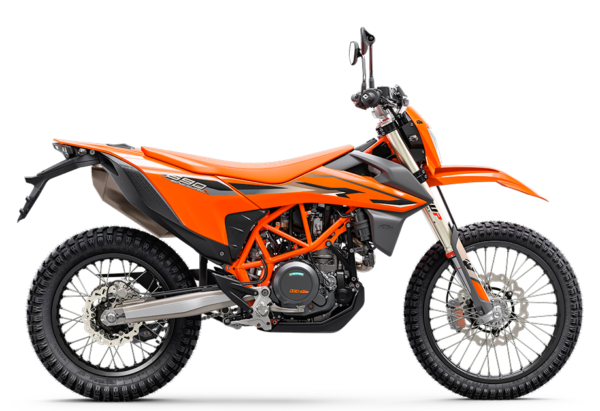

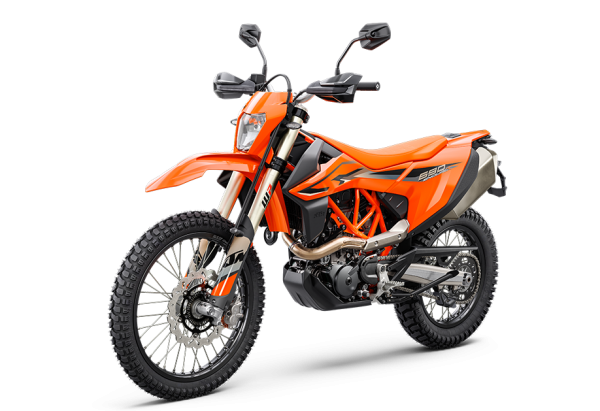

Ride from home and feel the adrenaline build while chasing tarmac curves towards your favourite offroad location. No trailer required just twist the throttle of the KTM 690 ENDURO R, which really comes into its own when the dirt begins and the trail gets more extreme. Its lightweight chassis, aggressive styling, and trusted 690 LC4 motor, are enhanced by the latest electronics and WP XPLOR suspension. Master more challenging terrain on this lightweight, high-performance king of versatility.
Description
ENGINE
- TORQUE73.5 Nm
- TRANSMISSION6-speed
- COOLINGLiquid cooled
- POWER IN KW55 kW
- STARTERElectric starter
- STROKE80 mm
- BORE105 mm
- CLUTCHPASC (TM) slipper clutch, hydraulically actuated
- CO2 EMISSIONS99 g/km
- DISPLACEMENT692.7 cm³
- EMSKeihin EMS with RBW, twin ignition
- DESIGN1-cylinder, 4-stroke engine
- FUEL CONSUMPTION4.3 l/100 km
- LUBRICATIONForced oil lubrication with 2 oil pumps
CHASSIS
- TANK CAPACITY (APPROX.)13.5 l
- ABSBosch 9.1 MP (incl. Cornering-ABS and offroad mode, disengageable)
- FRONT BRAKE DISC DIAMETER300 mm
- REAR BRAKE DISC DIAMETER240 mm
- FRONT BRAKEBrembo twin-piston floating calliper, brake disc
- REAR BRAKEBrembo single-piston floating calliper, brake disc
- CHAIN520 X-Ring
- FRAME DESIGNChrome-moly tubular space frame, powder-coated
- FRONT SUSPENSIONWP XPLOR-USD, Ø 48 mm
- GROUND CLEARANCE269 mm
- REAR SUSPENSIONWP XPLOR with Pro-Lever linkage
- SEAT HEIGHT929 mm
- STEERING HEAD ANGLE62.3 °
- SUSPENSION TRAVEL (FRONT)250 mm
- SUSPENSION TRAVEL (REAR)250 mm
