€25,099

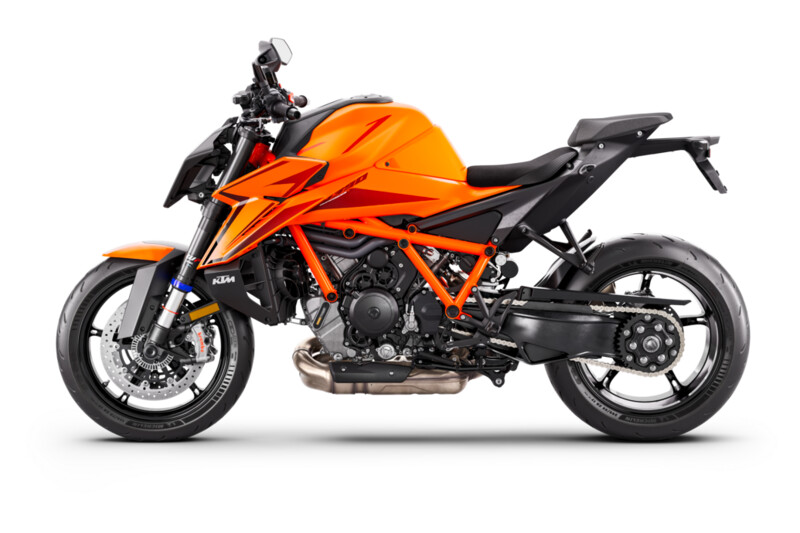

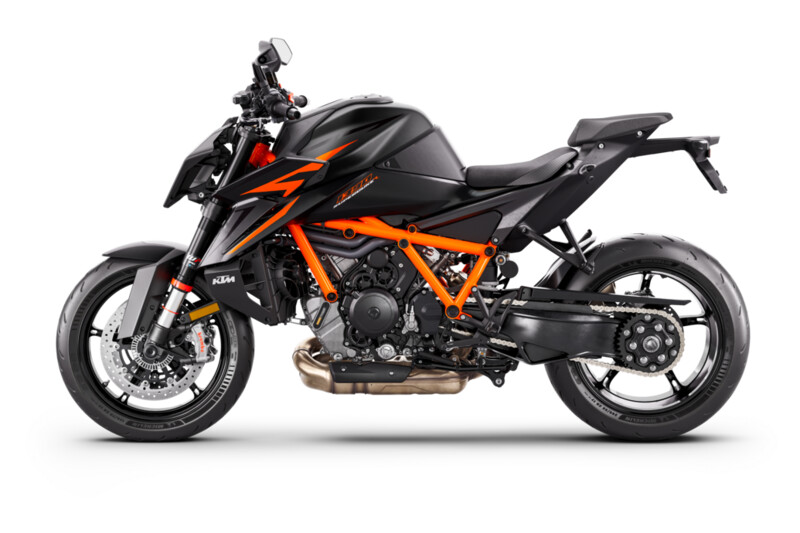

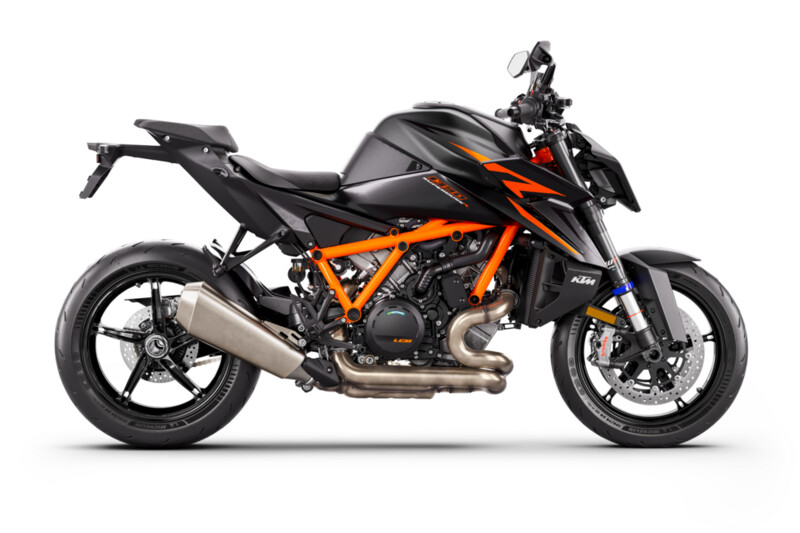

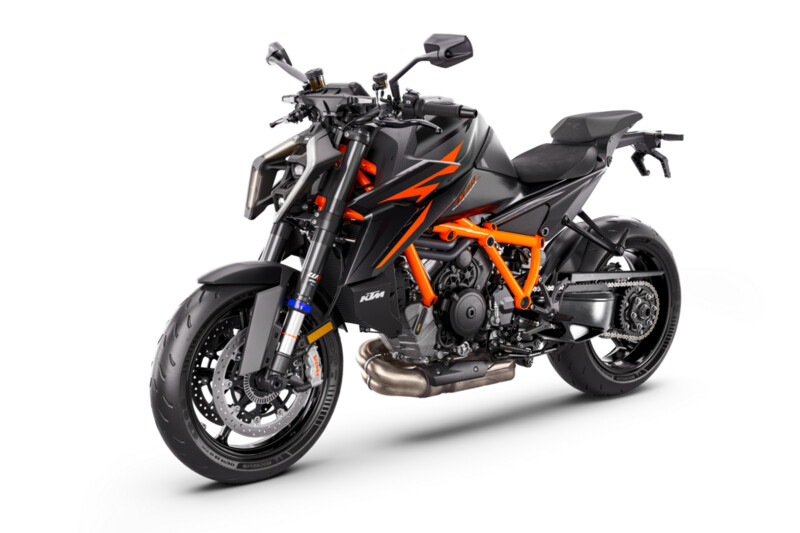

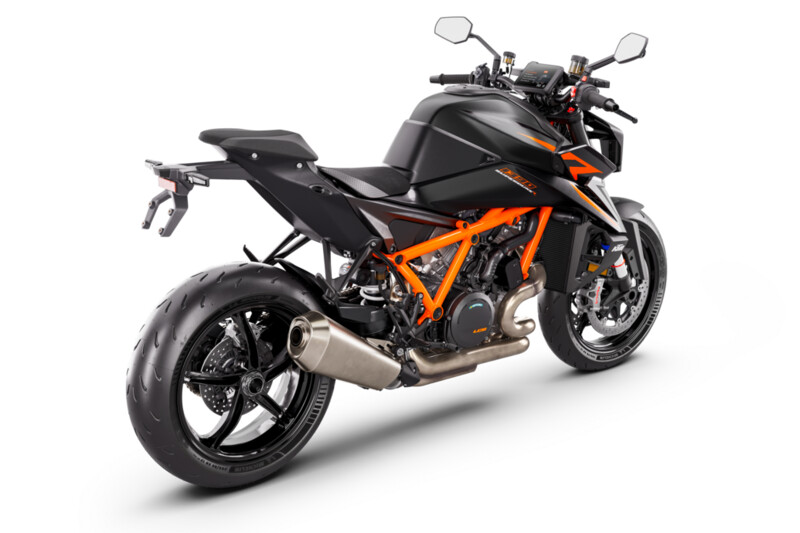

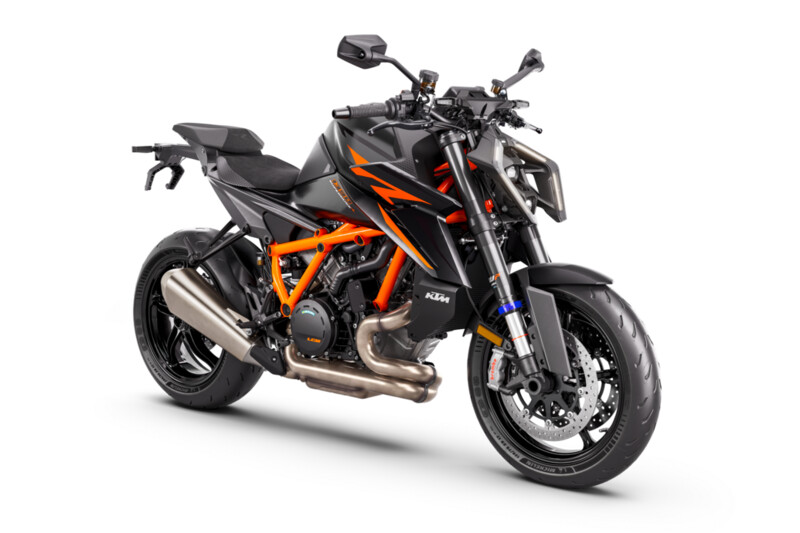

The KTM 1390 SUPER DUKE R EVO is truly an evolved BEAST. Not only does it share the same advancement as the all-new KTM 1390 SUPER DUKE R, but it also brings intuitive WP Semi-Active Suspension Technology (SAT) to the fore. Being able to automatically adapt its suspension to the riders input or the road surface, it brings intelligence to the tarmac and into the hunt.
TECHNICAL DETAILS
ENGINE
- TORQUE145 Nm
- TRANSMISSION6-speed
- BATTERY CAPACITY11.2 Ah
- COOLINGLiquid cooled with water/oil heat exchanger
- POWER IN KW140 kW
- STARTERElectric starter
- STROKE71 mm
- BORE110 mm
- CLUTCHPASC (TM) slipper clutch, hydraulically actuated
- CO2 EMISSIONS139 g/km
- DISPLACEMENT1350 cm³
- EMSKeihin EMS with RBW and cruise control, double ignition
- DESIGN2-cylinder, 4-stroke, V 75°
- FUEL CONSUMPTION5.9 l/100 km
- LUBRICATIONForced oil lubrication with 3 oil pumps
CHASSIS
- WEIGHT (WITHOUT FUEL)200 kg
- TANK CAPACITY (APPROX.)17.5 l
- FRONT BRAKE DISC DIAMETER320 mm
- REAR BRAKE DISC DIAMETER240 mm
- FRONT BRAKE2 x Brembo Stylema Monobloc four piston, radially mounted caliper
- REAR BRAKEBrembo twin-piston fixed calliper, brake disc
- CHAIN525 X-Ring
- FRAME DESIGNChrome-moly tubular space frame, powder-coated
- GROUND CLEARANCE149 mm
- SEAT HEIGHT834 mm
- STEERING HEAD ANGLE65.3 °
- SUSPENSION TRAVEL (FRONT)125 mm
- SUSPENSION TRAVEL (REAR)140 mm
Description
THE BEAST, EVOLVED
