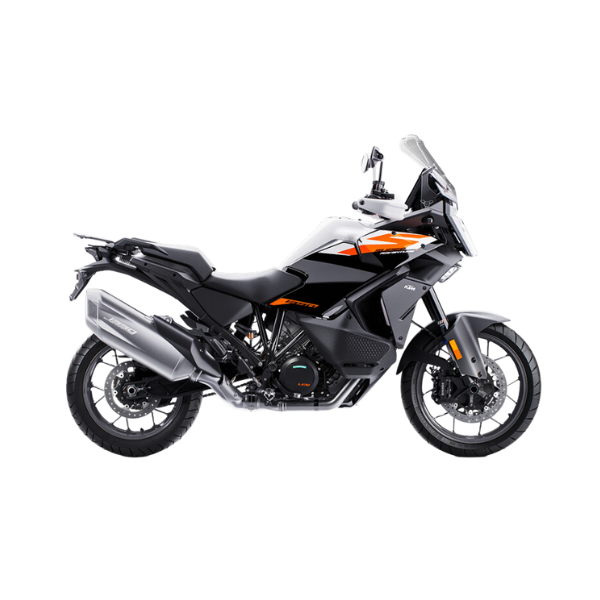

KTM 1390 Super Adventure S 2025

The KTM 1390 SUPER ADVENTURE S is for thrill-seekers who live for fast-paced adventure and demand the control of a manual transmission. Boasting fresh new tech, muscular looks, and a 173 hp punch, the S is aimed at riders who want to explore the world on the tarmac – but with the option to hit the dirt if it calls – this street-eating Adventure machine is engineered to cover ground. Fast. This motorcycle is designed, developed, and produced in Austria.

Categories: , , ,

Description

Technical Details

Engine

  • Primary drive40:76
  • Torque145 Nm
  • Transmission6-speed
  • CoolingLiquid cooled with water/oil heat exchanger
  • Secondary gear ratio17:42
  • Power in KW127 kW
  • StarterElectric starter
  • Stroke71 mm
  • Bore110 mm
  • CO2 emissions139.5 g/km
  • Compression ratio13
  • Displacement1350 cm³
  • EMSKeihin EMS with RBW, twin ignition
  • Design2-cylinder, 4-stroke, V 75°
  • Fuel consumption6.7 l/100 km
  • Fuel-mixture generationKeihin EFI (throttle body Ø 54 mm)
  • LubricationForced oil lubrication with 3 oil pumps
  • Power in hp170 hp

Chassis

  • Weight (without fuel)227 kg
  • Tank capacity (approx.)23 l
  • Wheelbase1558 mm
  • Front brake2 x Brembo 4-piston, radially mounted caliper, brake disc Ø 320 mm
  • Rear brakeBrembo 2-piston, fixed caliper, brake disc Ø 267 mm
  • Chain525 X-Ring
  • Frame designChromium-Molybdenum-Steel trellis frame, powder coated
  • Front suspensionWP SAT (semi-active technology) Upside-Down Ø 48 mm
  • Ground clearance223 mm
  • HandlebarTapered aluminum Ø 28/22 mm
  • Rear suspensionWP SAT (semi-active technology) shock absorber
  • Seat height847/867 mm
  • Steering head angle65.2 °
  • Rear subframe designAluminium, powder-coated
  • Suspension travel (front)200 mm
  • Suspension travel (rear)200 mm
  • Tyre dimensions (front/rear)120/70; 170/60
  • Wheels3.50 x 19″; 5 x 17″
  • WheelsCast aluminium wheels
  • Wheelbase1558 ± 15 mm
