€4,999

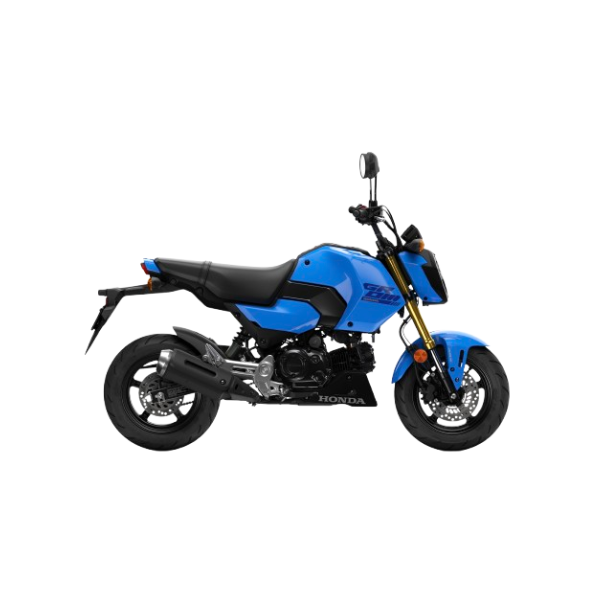

After 6 years of quiet success and several small styling evolutions, with an eye on the next wave of young riders, 21YM saw a new MSX125 hit the streets of Europe with an even cooler direction of travel, and a new name – the MSX125 Grom.
For 23YM two striking new colours are available for Honda’s little machine that continues to brim with big dreams.
Description
ENGINE
| Type | 2-valve air-cooled single cylinder |
| Displacement | 125cc |
| Bore & Stroke | 50.0mm x 63.1mm |
| Compression Ratio | 10.0:1 |
| Max. Power Output | 7.2Kw @ 7,250rpm |
| Max. Torque | 10.5Nm @ 5,500rpm |
| Oil Capacity | 1.1 litres |
| Noise Level | Lurban 69.7; Lwot 71.2 |
FUEL SYSTEM
| Carburation | PGM-FI |
| Fuel Tank Capacity | 6.0 litres |
| Fuel Consumption | 65.7km/l |
ELECTRICAL SYSTEM
| Starter | Electric Motor |
| Battery Capacity | 12V 3.5AH |
| ACG Output | 225W/5000rpm |
DRIVETRAIN
| Clutch Type | Wet multiplate |
| Transmission Type | 5 speed |
| Final Drive | Chain |
FRAME
| Type | Steel mono-backbone frame |
CHASSIS
| Dimensions (L´W´H) | 1,760mm x 720mm x 1,015mm |
| Wheelbase | 1,200mm |
| Caster Angle | 25⁰ |
| Trail | 81mm |
| Seat Height | 761mm |
| Ground Clearance | 180mm |
| Kerb Weight | 103kg |
| Turning radius | 1.9 metres |
SUSPENSION
| Type Front | USD Front Forks, 31mm |
| Type Rear | Mono shock, steel square pipe swingarm |
WHEELS
| Type Front | 5 Spoke Aluminium Cast |
| Type Rear | 5 Spoke Aluminium Cast |
| Rim Size Front | MT 2.5-12 |
| Rim Size Rear | MT 2.5-12 |
| Tyres Front | 120/70-12 |
| Tyres Rear | 130/70-12 |
BRAKES
| Type Front | Single 220mm disc with hydraulic dual-piston brake caliper |
| Type Rear | Single 190mm disc with hydraulic single-piston brake caliper |
INSTRUMENTS & ELECTRICS
| Instruments | LCD digital dash with speedometer, twin trip meters, fuel gauge and clock. |
| Headlight | LED Headlight and Taillight |
