€8,499

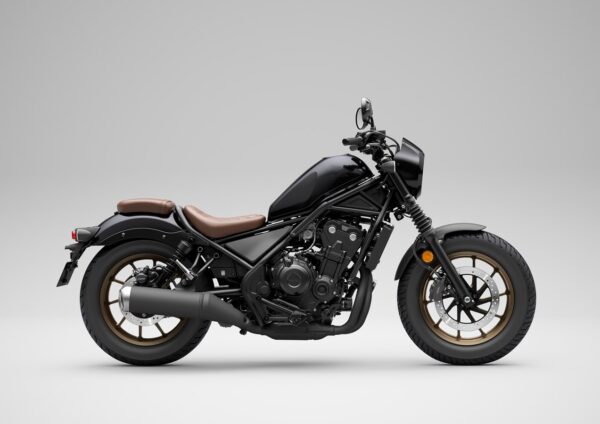

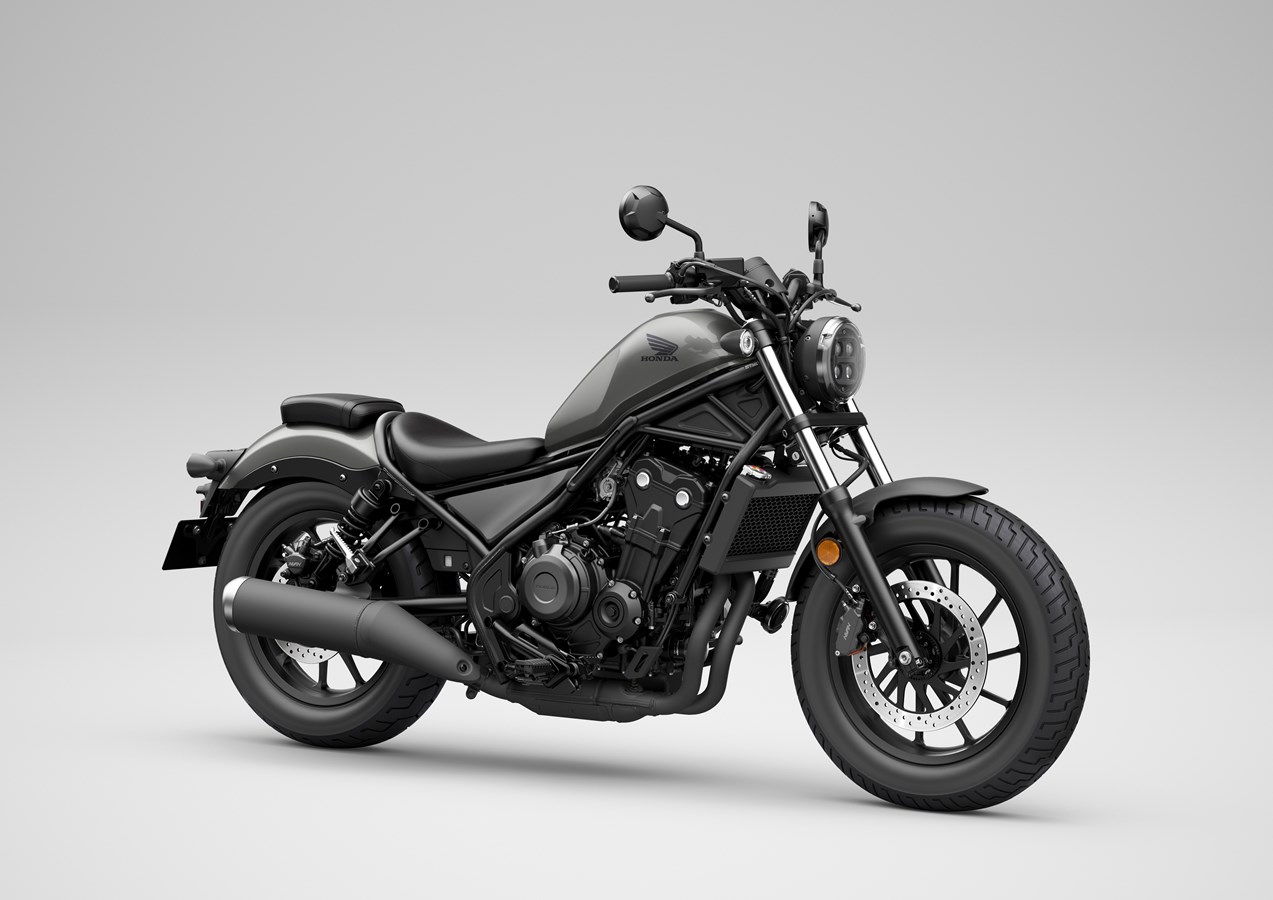

The 24YM CMX500 Rebel will be available in the following colour options: Seal Silver Metallic **NEW** Matt Laurel Green Metallic **NEW** Mat Gunpowder Black Metallic The 24YM CMX500 Rebel ‘S’ Edition will be available in the following colour option: Pearl Shining Black **NEW**
Description
| ENGINE | |
| Type | Liquid-cooled, DOHC |
| Engine Displacement (cm³) | 471 |
| No. of Valves per Cylinder | 4 |
| Bore ´ Stroke (mm) | 67 x 66.8 |
| Compression Ratio | 10.7:1 |
| Max. Power Output | 34kW/8,500rpm |
| Max. Torque | 43.3Nm/6,000rpm |
| Oil Capacity | 3.2 litres |
| Noise Level (dB) | Lwot 78Lurban 74 |
| FUEL SYSTEM | |
| Carburation | PGM-FI |
| Fuel Tank Capacity | 11.2L |
| Fuel consumption | 27km/litre |
| ELECTRICAL SYSTEM | |
| Starter | Electric |
| Battery Capacity | 12V |
| ACG Output | 0.5kW |
| DRIVETRAIN | |
| Clutch Type | Wet multiplate |
| Transmission Type | 6-speed |
| Final Drive | Chain |
| FRAME | |
| Type | Steel diamond |
| CHASSIS | |
| Dimensions (LxWxH) mm | 2,205 x 820 x 1,090 |
| Wheelbase | 1490mm |
| Caster Angle | 28° |
| Trail | 110 |
| Seat Height | 690mm |
| Ground Clearance | 125mm |
| Kerb Weight | 191kg |
| Turning radius | 2.8m |
| SUSPENSION | |
| Type Front | 41mm Telescopic forks |
| Type Rear | Showa twin shock |
| WHEELS | |
| Rim Size Front | 16M/C x MT3.00 |
| Rim Size Rear | 16M/C x MT3.50 |
| Tyres Front | 130/90-16M/C 67H |
| Tyres Rear | 150/80-16M/C 71H |
| BRAKES | |
| ABS System Type | Two channel |
| INSTRUMENTS & ELECTRICS | |
| Instruments | Digital |
| Headlight | LED |
| Taillight | LED |
