€30,099
Unleash our MotoGP engine technology in inline four-cylinder form and chase through to the CBR1000RR-R Fireblade SP’S redline.
- Second-generation semi-active Öhlins Electronic Control (S-EC)
The Öhlins NPX fork uses a pressurised damping system to minimise cavitation, resulting in more stable damping control and improved bump absorption at high speeds. Feel for front tyre grip is also enhanced. The rear shock is also by Öhlins; the upper mount attaches at the back of the engine to enhance high-speed handling. - Brembo Stylema front brake calipers
Incredible braking power is provided by the latest Brembo Stylema monobloc four-piston radial-mount front brake calipers – with Brembo brake lever and master cylinder to match. The calipers maintain rigidity but are 7% lighter, with less internal fluid volume for more immediate reaction. - RC213V-S-inspired swingarm design
The aluminium swingarm – based on the designed used by the RC213V-S – is 30.5mm longer, at 622.7mm but weighs exactly the same as the previous design. Its horizontal rigidity is reduced by 15%, with vertical rigidity maintained to generate incredible rear tyre grip – and feel to go with it. - Launch control for fast starts
The CBR1000RR-R Fireblade SP is equipped with Launch Control for race starts. It limits engine rpm at 6,000, 7,000, 8,000 and 9,000rpm set-points, even with a wide-open throttle, letting you focus on clutch release (and lights) alone. A quickshifter is also fitted as standard, with performance optimised for racetrack performance and reliability. -
Switchable ABS modes
For flexible ability (and along with Rear Lift Control) the ABS gains two switchable modes; SPORTS mode focuses on road-riding performance, with high brake force and less pitching, while TRACK mode offers power and feel braking from much higher circuit speeds. Both are controlled with input from the six-axis Inertial Measurement Unit (IMU)
Description
Engine
Bore × Stroke (mm) | 81mm x 48.5mm |
Carburation | PGM-FI |
Compression Ratio | 13.0:1 |
Engine Displacement (cc) | 999.9cc |
Engine Type (cm³) | Water-cooled, 4-stroke, DOHC, inline 4-cylinder |
Max. Power Output | 160kW/14,500rpm |
Max. Torque | 113Nm/12,500rpm |
Oil Capacity (Litres) | 3.8L |
Starter | Electric |
Throttle Bore | 52mm |
Wheels
Suspension Front | SHOWA BPF 43mm telescopic fork |
Suspension Rear | SHOWA BFR-C Pro-Link swingarm |
Tyres Front | PIRE:DIABLO SUPERCORSA SP (V3) BS:RS11 |
Tyre Size Rear | PIRE:DIABLO SUPERCORSA SP (V3) BS:RS11 |
ABS System | 2 channel with IMU |
Brakes Front | 330mm disc with radial-mount NISSIN 4-piston caliper |
Brakes Rear | 220mm disc with Brembo 2-Piston caliper |
Tyre Size Front | 120/70-ZR17 |
Tyre Size Rear | 200/55-ZR17 |
Wheels Front | 17inch 3.5 |
Wheels Rear | 17inch 6.0 |
Dimensions and Weights
Battery Capacity (VAh) | 12-6 YTZ7S |
Caster Angle | 24.1° |
Dimensions (L×W×H) (mm) | 2099mm x 762.4mm x 1136mm |
Frame type | AL TWIN-TUBE |
Fuel Tank Capacity (Litres) | 16.1L |
Ground Clearance (mm) | 118.6mm |
Kerb Weight (kg) | 202.1kg |
Seat Height (mm) | 831mm |
Trail (mm) | 101.4mm |
Fuel Consumption | 16.0km/l (WMTC mode) |
Transmission
Clutch | Wet, multiplate hydraulic clutch |
Final Drive | Chain |
Gearbox | 6-speed |
Clutch Operation | Cable |
Transmission Type | Manual Transmission |
Instruments and Electrics
Headlights | LED |
Tail Light | LED |

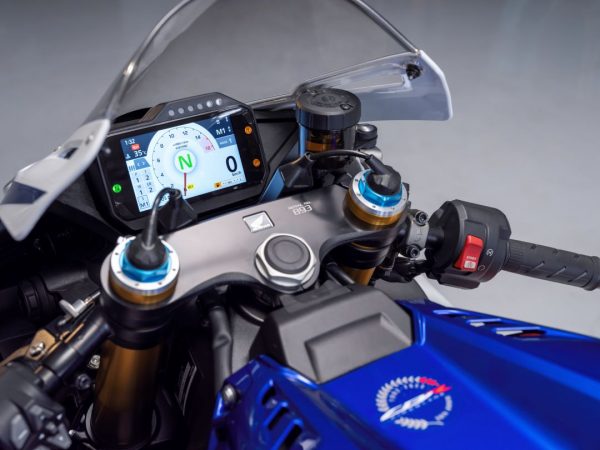

Instruments | TFT full color |
Ignition System | Electronic, digital transistor |
12v Socket | Optional (USB) |
USB Socket | Optional |
Additional information
Variations | Standard, SP |
---|
