€3,999

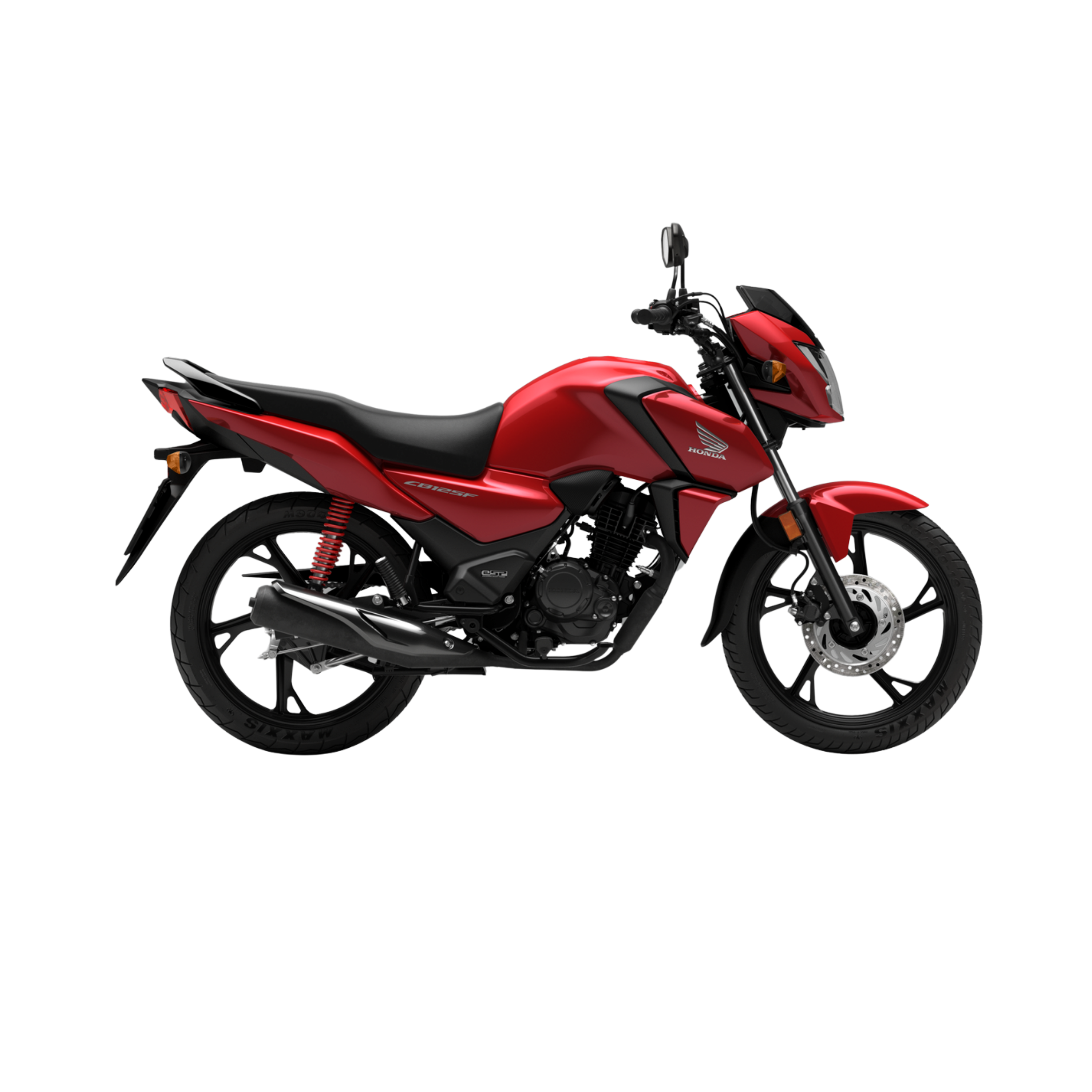

The smart acceleration from the punchy, single-cylinder engine fills you with an overwhelming sense of freedom. You can go anywhere, anytime. You never have to miss a moment. This is your key to the city. Five-speed PGM-FI fuel-injected engine with a slim body, feather light 126kg kerb weight and wide handlebars.
Features:
- Sharp Look: The CB125F brings a sharp new look that inspires excitement and escape. Its 3D-effect side shrouds, broad-shouldered fuel tank and compact nose cowl shout loudly, matched with stunning paint options to highlight the aggressive lines.
- Smart Technology: The twin-dashed instrument panel helps to keep you in the know on the go, while the neat, symmetrical design and centrally placed gearshift indicator allow for perfectly timed upshifts.
- Super Six: The stylish new 18-inch diameter six-spoke aluminium wheels make every ride a thrill, ironing out road imperfections while improving high-speed stability and cornering feedback.
- More Freedom: The new steel frame, telescopic forks and twin rear shocks deliver nimble, yet stable, handling, giving you the freedom to be more confident in the corners. A 45° left and right steering lock ensures fast progress when navigating busy streets.
- Room for passengers: Double the thrill with a friend. The carefully contoured side cowls narrow toward the rear of the machine, balancing the height gap between rider and passenger for improved comfort.
Description
ENGINE
Type | Air cooled 4 stroke OHC single |
Displacement | 124cc |
No of Valves per Cylinder | 2 |
Bore & Stroke | 50 x 63.1mm |
Compression Ratio | 10.0:1 |
Max. Power Output | 8kW @7,500rpm |
Max. Torque | 10.9Nm @ 6,000rpm |
Noise level (dB) | 73.5dB(Lwot) 71.8dB(Lurban) |
Oil Capacity | 1L |
FUEL SYSTEM
Carburation | PGM-FI electronic fuel injection |
Fuel Tank Capacity | 11L |
Fuel Consumption (WMTC) | 66.7 Km/L |
CO2 Emissions WMTC | 34 g/km |
ELECTRICAL SYSTEM
Battery Capacity | 12V-5A・h |
DRIVETRAIN
Clutch Type | Wet, multiplate with coil springs |
Transmission Type | 5 speed |
Final Drive | Chain |
FRAME
Type | Tubular steel |
Dimensions (L´W´H) | 2015mm x 750mm x 1100mm |
Wheelbase | 1280mm |
Caster Angle | 26° |
Trail | 92.4mm |
Seat Height | 790mm |
Ground Clearance | 160mm |
Kerb Weight | 117KG |
Turning radius | 2.04m |
SUSPENSION
Type Front | 31mm telescopic |
Type Rear | Dual shocks – 5 stage preload |
WHEELS
Type Front | 18in five spoke aluminium |
Type Rear | 18in five spoke aluminium |
Tyres Front | 80 / 100 18M/C |
Tyres Rear | 90 / 90 18M/C |
BRAKES
System Type | CBS |
Type Front | 240mm single disc with two piston caliper |
Type Rear | 130mm drum |
INSTRUMENTS & ELECTRICS
Instruments | Speedometer, milometer, fuel gauge, rpm counter, gear position indicator |
Headlight | LED |
Taillight | LED |
